Description
carroussel tissue processor like Leica TP1020

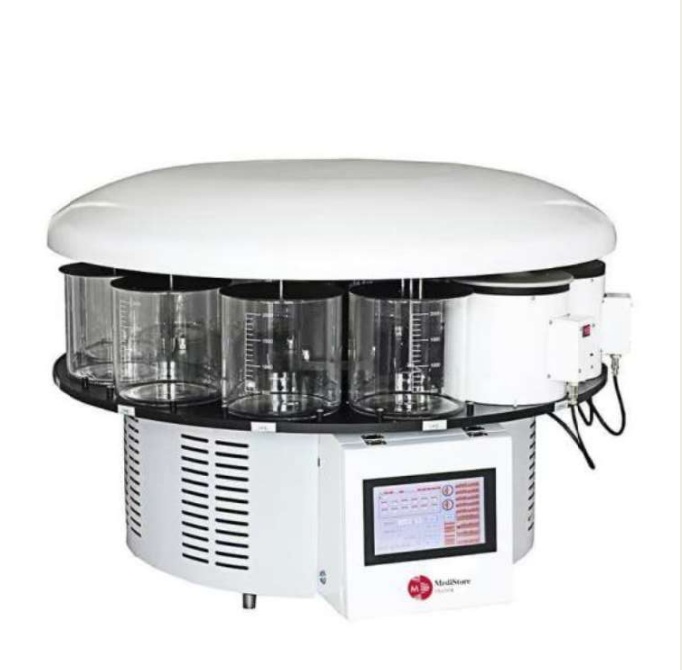

Carrousels Spin Tissue Processor MEDISTORE FRANCE (NEW)
With a 1-year warranty from MEDISTORE France
Details: Japan Mitsubishi PLC
Time-setting adjustment range: It can be started on any day or every day. The working time of each cylinder can be set up to 999 minutes. The minimum is 1 minute for the 1st and 12th cylinders, and the minimum is 0 for the other cylinders.
The 1.2 L medical aquarium with 3 slices allows you to observe at any time the progression of the tissues during processing.
Tissue processing steps: 12 steps.
Glass container: quantity – capacity – 1.2 L
Wax cup: quantity – capacity – 1 L
Temperature range: 60–99°C (can be designed according to the user’s needs).
Process: Each cup operates for 0–59h59min.
Operating conditions:
Ambient temperature: +5°C to +40°C
Ambient humidity: <85% (at 20±5°C)
Vertical reciprocating movement of the tissue basket: 3 times/min
Tissue basket specification:
Drum basket – Φ95×100 mm
Layered holder – Φ95×80 mm, five layers
Power: 400–500 W
Rated voltage: AC220V 50Hz / AC110V 60Hz
Net weight: 53 kg
Dimensions: 670×550×680 mm
Accessories: Reagent bottle (9 pcs), paraffin wax tank (3 pcs), wax tank connection line (3 pcs), tissue basket (1 pc), tissue cassettes (20 pcs), hex key (1 pc), screwdriver (1 pc), fuse (5A) (2 pcs), power cable (1 pc)
